Industrial PDA Barcode Scanner

Industrial PDA Barcode Scanner

Brand Name:	MobyData
Model Number:	M63
MOQ:	1pcs
Price:	TBD
Delivery Time:	7wks days < MOQ500
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Certification, CE

Document:

M63.pdf

OS:

Android 14

CPU:

Octa Core, 2.0GHz; 2XA75+6xA55 Or 4xA53+4xA53

MEMORY:

RAM: 2GB Flash: 32GB

Weight:

279g (With Battery)

Dimension:

165.86mmx67mmx19.22mm

LCD:

4.0 Inch, 800*480, IPS GFF Capacitive Screen, Multi-touch

Camera:

Main Camera: Auto Focus 8Mega

Sensor:

Status Lamp

Packaging Details:

Carton

Supply Ability:

20K pcs per Month

Highlight:

Keyboard Mobile Computer

Retail PDA Bar Code Scanner

PDA Bar Code Scanner Android 14

Product Description

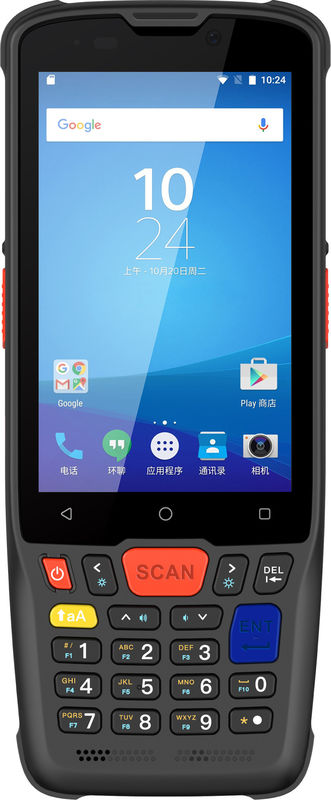

M63 Professional PDA with Barcode Scanner

Android 14 GMS PDA with WVGA LCD, Keyboard & Touch, MT8786 Processor, 4GB+64GB, WWAN/WLAN/BT/GPS, and E3150 Scan Engine

Product Description

Authorized decoding libraries by Datalogic

Application Area

General Purpose Professional PDA Equipment

Android 14 with 4G communication support and custom WiFi roaming performance
1.3 million BSI high sensitivity scan engine
1 meter height drop tested 1000 times without LCD damage
5000mAh large capacity replaceable battery for 15 hours continuous work
Durable SCAN and ENT keys designed to never wear out or fade
Antutu score of 220,000 points (select models)
Supported by Mobydata software service

Optional Accessory

Product Specifications

Technical Specifications

OS	Android 14
CPU	Octa Core, 2.0GHz; 2XA75+6xA55 or 4xA53+4xA53
Memory	RAM: 2GB/4GB; Flash: 32GB/64GB

Physical Specifications

Weight	279g (With battery)
Dimension	165.86mm × 67mm × 19.22mm
Keypad	20-key numeric keyboard with Left/right scan, Back, home, toggle touch keys

Main Parameters

LCD	4.0 inch, 800×480
Touch Panel	IPS GFF capacitive screen, multi-touch
Extend Slot	SIM card slot: Single card, Nano SIM×1 + TF×1 SD card slot: MicroSD, up to 256GB
Main Camera	Auto focus 8MP with flash
Front Camera	Fixed focal length, 5MP (option)

Power and Charging

USB	USB 2.0 Type-C charging data transmission
Adapter	5V2A 100~240V AC 50/60HZ, Plug: National standard
Battery	5000 mAh min, Replaceable
Charging Time	<3.5h
Operation Time	>30 hours
Battery Life	500 cycles > 80%

Sensors

Gravity Sensor	Option
Proximity Sensor	Option
Photosensitive Sensor	Option
Hall Sensor	Option
Status Lamp	Yes

Voice

Speaker	Min 100db
Receiver	Option
Mic	Double Mic with Noise Reduction

Environment

IP Rating	IP65
Drop Test	1.5m steel floor fell 30 times, 1.8m steel floor fell 60 times (with silicone sleeve)
Tumble Test	0.5m steel plate falls 2000 times, 0.5m steel plate roller 3000 times (with silicone sleeve)
Storage Temperature	-30°C to 70°C
Operation Temperature	-25°C to +55°C
Humidity	5%-95% non-condensing
Charging Temperature	0°C to 35°C
ESD	8K/15K

Data Collection

Engine	E31XX/E34XX
Green Spot	Option
Symbologies	1D Codes / 2D Codes / Postal Codes

Wireless

Bluetooth	BLE V5.0
WLAN	802.11.a/b/g/n/ac WiFi dual band radio; IPv4; IPv6
GPS	GPS/Glonass/Galileo/Beidou, Assisted GPS
NFC	Option
WWAN	2G/3G/4G full Netcom
VOLTE	Yes
CA	LTE CAT6, CA B1/3/7/40/41, Downlink 300Mbps

Gift Box

Device, QSG, Adapter, USB cable, Battery

Optional Accessory

Single host and battery charger, 4-slot device charger, 4 battery charger,
Spare battery, silicon rubber case, wrist strap, Shoulder belt

Warranty

Labor warranty for parts for 12 months

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are. As a professional manufacturer specializing in barcode scanners and PDA terminals, we possess deep expertise in industrial design, mainboard development, product testing, and full-scale production. We enforce rigorous quality control across all operational processes, ensuring our products consistently meet the highest industry standards.

2. Will you provide free SDK for me?

Certainly

3. What is the warranty period for your products?

Our products come with a Min. 12-month warranty (starting from the date of shipment), excluding parts that are consumable.

4. What is your minimum order quantity (MOQ)?

The standard MOQ for stock products is 1 unit. For OEM/ODM projects, please provide your detailed requirements (e.g., customization scope, specifications), and we will advise the corresponding MOQ based on your needs.

5. Is it possible to obtain a free sample?

While we do not offer free samples, we welcome you to purchase a single sample unit for testing and evaluation.

6. Do you accept payments via PayPal?

7. How long is the delivery time?

For sample orders, we usually dispatch within 2-3 working days after payment has been confirmed. For bulk orders, the lead time may vary from 1 to 4 weeks, depending on the exact quantity required.

8. What shipping methods do you use for delivery?

DHL, UPS, TNT, FEDEX, Aramex, EMS, and E-packing, or arrange the collection of goods yourself.

9. Could you describe your after-sales service?

a. All products come with a minimum 12-month warranty (extendable for certain components), covering manufacturing defects and non-consumable parts.
b. We maintain a large inventory of genuine spare parts to ensure prompt replacement or repair of service requests, minimizing downtime for your operations.
c. Our team of certified engineers provides 24/7 online support (via phone, email, or remote access) to address troubleshooting, software updates, and operational guidance.
d. For complex issues, we can offer on-site service support (subject to regional availability) and customized maintenance plans to meet your specific needs.
