PDA Barcode Scanner
Created with Pixso. M72 Keyboard Industrial PDA Barcode Scanner Android 12 Retail Mobile Computer

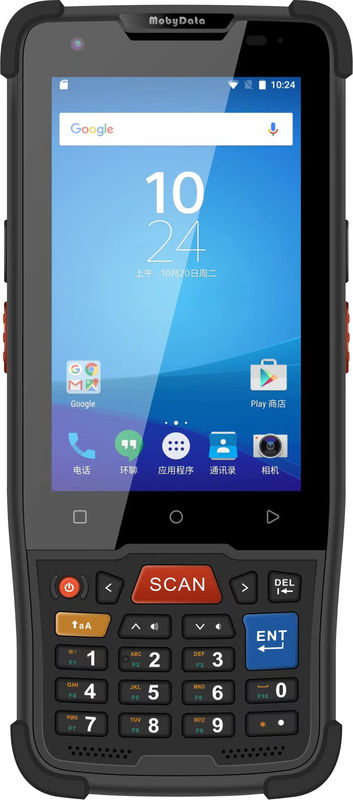

M72 Keyboard Industrial PDA Barcode Scanner Android 12 Retail Mobile Computer

Brand Name: MobyData
Model Number: M72
MOQ: 1pcs
Price: TBD
Delivery Time: 7wks days < MOQ500
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
China Certification, CE
Document:
OS:
Android 12
CPU:
Octa Core, 2.0GHz
MEMORY:
RAM:4GB, Flash:64GB
Weight:
274g (With Battery)
Dimension:
166mm×71mm×17mm
LCD:
4.0 Inch, IPS, 800*480, Visible Under Sunshine
Camera:
Front Camera Fixed Focal Length, 5Mega (option Version) Main Camera Auto Focus 13Mega, Dual Flash LED
Adaptor:
12W, 20W (option Version)
Extend Slot:
Nano SIM;TF Up To 128GB, PSAM/SIM Two In One (option Version)
Sensor:
Gravity Sensor, Proximity Detector, Photosensitive Sensor , Hall Element,Electronic Compass(option Version) , Gyroscope(option Version), Status Lamp
Packaging Details:
Carton
Supply Ability:
20K pcs per Month
Highlight:

Industrial PDA Barcode Scanner

,

PDA Barcode Scanner Android 12

,

PDA Retail Mobile Computer

Product Description

Authorized decoding libraries by Datalogic



Application Area

M72 Keyboard Industrial PDA Barcode Scanner Android 12 Retail Mobile Computer 0

Professional PDA equipment for intelligent manufacturing industry

  • Customized Wifi performance, support 4G communication
  • A new generation of dual camera decoding engine, intelligent three-color lighting, intelligent near and far switching
  • Full working condition industrial protection performance, 1.8 meters 30 times fall, 3000 times 0.5 meters flip,  600 times 1 meter flip, the battery can work normally
  • IP67 waterproof and dustproof rating
  • Large capacity replaceable battery, 18 hours working time, hot swappable
  • Double horn design, no fear of noisy environment, maximum 120db
  • Mobydata software service is supported

Optional Accessory

M72 Keyboard Industrial PDA Barcode Scanner Android 12 Retail Mobile Computer 1

Product specification

M72 Specifications
OS Android 12
CPU MT8768A,Octa Core CPU, 12nm
MEMORY 3+32/4+64
Extend Slot MicroSD,support SDHC, up to 128GB;
Nano
PC Communication USB 2.0 OTG: Type-C;
Sensers Gravity sensor, Proximity detector, Photosensitive sensor, Hall element,Electronic compass(option version), Gyroscope(option version), Status lamp
LED Charging, Scan and System stauts
Charging Time ≤2.5 h (Room Temperature)
Operation Duration 18 hours
Data Collection
Scan Engine Support VGA Dual Camera scan engine of Mobydata E3300
2D Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Micro QR Code; QR Code; EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites;Digimarc(E3250 supports)
1D Auto discriminates all standard 1D codes including GS1,code39,code 128,code93
DataBarTM linear codes.
Post Australian Post; British Post; China Post; IMB; Japanese
Post; KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(Optional) 13.56MHz NFC
Wireless Connectivity
WLAN 802.11 a/b/g/n/ac, 5G FEM PA
WWAN WWAN ROW
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B1/2/3/5/7/8/20/28
TDD_LTE:B34/B38/39/40/41
WWAN NA
GSM: QB
UMTS: B1/B2/B5/B8
FDD_LTE:B2/B4/B5/B7/B12/B17/B25/B26
VoLTE LTE CAT6
CA Downlink 300Mbps, B1/B3/B39/B40/B41
WPAN BT 5.1
GPS GPS/Glonass/Beidou,Assisted GPS
Physical Specifications
LCD 4” , IPS, 800*480, 450nits
Touch Capacitive screen, High strength glass
Camera Fixed focal length of front camera, 5 million pixels (option version); Main camera autofocus, 13 megapixel, dual flash
Keypad Left/Right Scan Key, Vol+/Vol- Key, Power Key,K1/K2 Function Key
Reciver Support
Speaker Double speaker, Greater than 100db
Mic Double Mic with Noise Reduction
Charging IO USB type-C
Battery Removable 5100mAh;Built-in small battery80mA,8C
Dimension 166*71*17mm(Without Scan Window)
Weight 274g(With battery)
Environmental Specifications
Operation Temperature -25°C to 55°C
Storage Temperature -30°C to 70°C
Humidity 5%-95% non-condensing
Drop 1.8m on concrete, 3 times on each side
Tumble 3000 hits of 0.5m tumble,600 hits of 1m tumble
IP IP67
ESD ± 8 kV contact discharge, ± 15 kV air discharge,
Keypad lifecycle 100k
Gift Box
Device, QSG, Adapter, USB cable,Battery
Optional Accessory
Single host charger, 4 host charger, Battery, Protective sheath, Hand shank
Warranty
Labor warranty for parts for 12 months



FAQ
1. Are you a manufacturer?
Yes, we are. As a professional manufacturer specializing in barcode scanners and PDA terminals, we possess deep expertise in industrial design, mainboard development, product testing, and full-scale production. We enforce rigorous quality control across all operational processes, ensuring our products consistently meet the highest industry standards.


2. Will you provide free SDK for me?
Certainly


3. What is the warranty period for your products?
Our products come with a Min. 12-month warranty (starting from the date of shipment), excluding parts that are consumable.


4. What is your minimum order quantity (MOQ)?
The standard MOQ for stock products is 1 unit. For OEM/ODM projects, please provide your detailed requirements (e.g., customization scope, specifications), and we will advise the corresponding MOQ based on your needs.


5. Is it possible to obtain a free sample?
While we do not offer free samples, we welcome you to purchase a single sample unit for testing and evaluation.


6. Do you accept payments via PayPal?
No


7. How long is the delivery time?
For sample orders, we usually dispatch within 2-3 working days after payment has been confirmed. For bulk orders, the lead time may vary from 1 to 4 weeks, depending on the exact quantity required.


8. What shipping methods do you use for delivery?
DHL, UPS, TNT, FEDEX, Aramex, EMS, and E-packing, or arrange the collection of goods yourself.



9. Could you describe your after-sales service?
a.  All products come with a minimum 12-month warranty (extendable for certain

components), covering manufacturing defects and non-consumable parts.

b. We maintain a large inventory of genuine spare parts to ensure prompt replacement or repair of service requests, minimizing downtime for your operations.

c. Our team of certified engineers provides 24/7 online support (via phone, email, or remote access) to address troubleshooting, software updates, and operational guidance.

d. For complex issues, we can offer on-site service support (subject to regional availability) and customized maintenance plans to meet your specific needs.
