Handheld Barcode Scanner
Created with Pixso. Retail Handheld Barcode Scanner 4mil 1800mA For Warehouse And Logistics

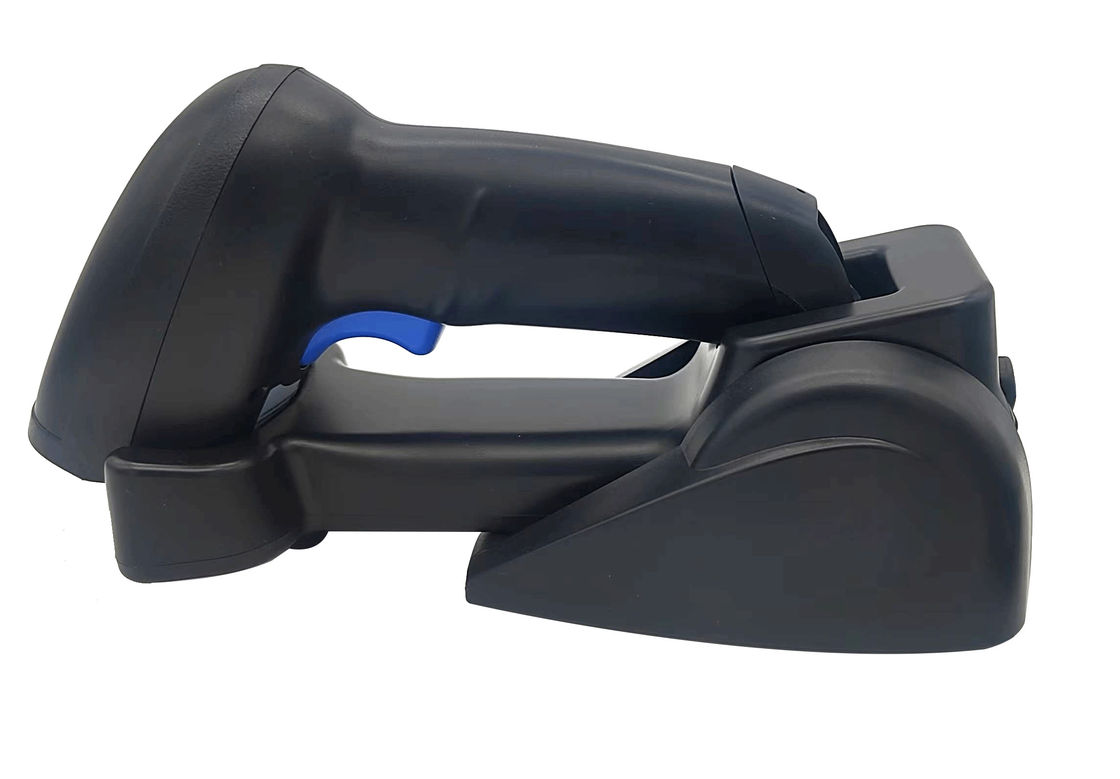

Retail Handheld Barcode Scanner 4mil 1800mA For Warehouse And Logistics

Brand Name: MobyData
Model Number: KS1600BT
MOQ: 1pcs
Price: TBD
Delivery Time: 7wks days < MOQ500
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
China Certification, CE
Document:
Dimensions:
177*83.5*64mm
Weight:
160g
Battery Capacity:
1800mA
ESD:
± 12 KV Air, ± 6 KV Contact
Min Resolution:
4mil
IP:
IP42
Packaging Details:
Carton and wooden box
Supply Ability:
20K pcs per Month
Highlight:

Retail Handheld Barcode Scanner

,

Handheld Barcode Scanner 4mil

,

1800mA Handheld Scanner For Warehouse

Product Description

Authorized decoding libraries by Datalogic



Application Area

Retail Handheld Barcode Scanner 4mil 1800mA For Warehouse And Logistics 0

Unique Product Characteristics

  • Intelligent three-color lighting to solve the reading problem under different color combinations
  • Global Shutter imaging Sensor with good motion tolerance
  • Strong reading ability for color barcodes, anti-white barcodes and some DPM barcodes
  • Support OCR, OPOS, JPOS

Optional Accessory

Retail Handheld Barcode Scanner 4mil 1800mA For Warehouse And Logistics 1

Product specification

Physical Characteristics
Dimensions 177*83.5*64mm
Weight 160g
Electrical
ESD ± 12 KV Air, ± 6 KV Contact
Battery capacity 1800mA
Input and output interfaces USB, bluetooth, 2.4G, bluetooth support HID, SPP, BLE
Environmental Specifications
Drop 1.2m
Tumble 2000hits, 0.5m, Steel
Temperature Operating: -20 to 50 °C;
Storage: -40 to 70 °C
Humidity 0 to 95% relative humidity, non-condensing
Light Levels 0 – 100,000 lux
IP IP42
Reading Performance
Sensor Global Shutter, 1280x800
Illumination Red, White, and Blue LED
Aiming Laser
Offline storage 16MB, 200000 barcode offline  storage
Min Resolution 4mil
Reading Indicators Beeper, LED indicating lamp, Vibration prompt
FOV 42°H x 26.8°V
Symbol Contrast 10% minimum print contrast ratio
Scan Angles Pitch: ±60°; Roll: ±180°; Yaw: ±60°
Symbologies
2D Codes  UCC Composite;Aztec;China Sensible Code;Datamatrix;DotCode;
QRCode;Micro QRCode;OCR Code
1D / Linear Codes Code EAN/UPC;GS1DataBar(RSS-14);Code39;Code 128(GS1-128);
Code ISBT 128;Code Standard 2of5;Compressed 2of5;Datalogic 2of5;
Industrial 2of5;Interleaved 2of5 (l2of5);Matrix 2of5;Codabar;Code11
Code93;MSI;Plessey;BC412;ISSN
Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post;
KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code
Stacked Codes EAN/JAN Composites; GS1 DataBar Composites;
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites
DOF
Barcode
5 mil Code 39 70 mm - 380 mm
13 mil EAN13 50 mm - 650 mm
10 mil DM 60 mm - 280 mm
15 mil QR 50 mm - 380 mm
Optional Accessory
USB cable, Charging source



FAQ
1. Are you a manufacturer?
Yes, we are. As a professional manufacturer specializing in barcode scanners and PDA terminals, we possess deep expertise in industrial design, mainboard development, product testing, and full-scale production. We enforce rigorous quality control across all operational processes, ensuring our products consistently meet the highest industry standards.


2. Will you provide free SDK for me?
Certainly


3. What is the warranty period for your products?
Our products come with a Min. 12-month warranty (starting from the date of shipment), excluding parts that are consumable.


4. What is your minimum order quantity (MOQ)?
The standard MOQ for stock products is 1 unit. For OEM/ODM projects, please provide your detailed requirements (e.g., customization scope, specifications), and we will advise the corresponding MOQ based on your needs.


5. Is it possible to obtain a free sample?
While we do not offer free samples, we welcome you to purchase a single sample unit for testing and evaluation.


6. Do you accept payments via PayPal?
No


7. How long is the delivery time?
For sample orders, we usually dispatch within 2-3 working days after payment has been confirmed. For bulk orders, the lead time may vary from 1 to 4 weeks, depending on the exact quantity required.


8. What shipping methods do you use for delivery?
DHL, UPS, TNT, FEDEX, Aramex, EMS, and E-packing, or arrange the collection of goods yourself.



9. Could you describe your after-sales service?
a.  All products come with a minimum 12-month warranty (extendable for certain

components), covering manufacturing defects and non-consumable parts.

b. We maintain a large inventory of genuine spare parts to ensure prompt replacement or repair of service requests, minimizing downtime for your operations.

c. Our team of certified engineers provides 24/7 online support (via phone, email, or remote access) to address troubleshooting, software updates, and operational guidance.

d. For complex issues, we can offer on-site service support (subject to regional availability) and customized maintenance plans to meet your specific needs.
