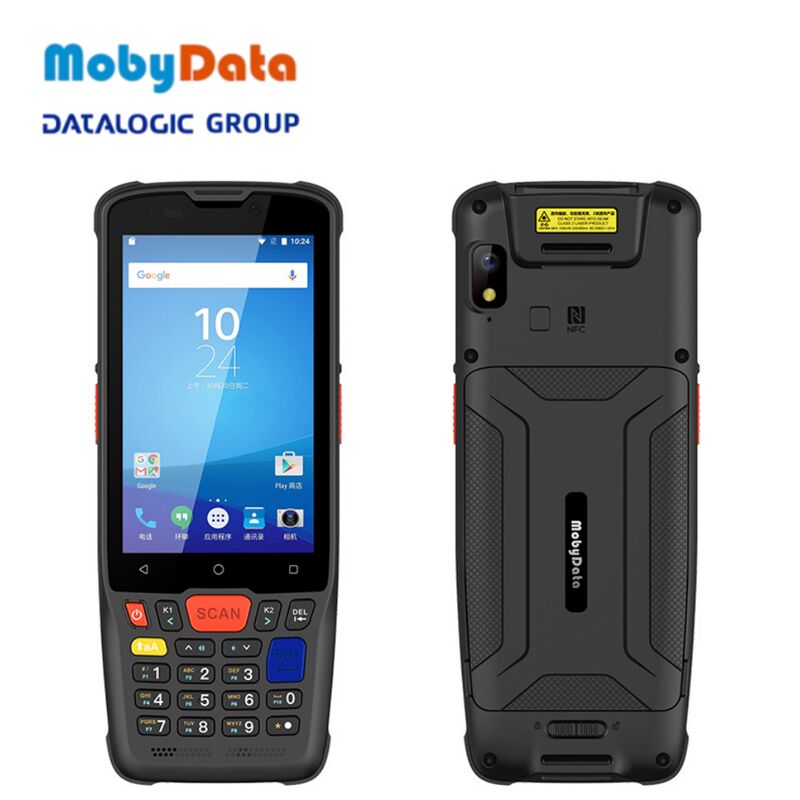

Mobydata M63 4G 3+32G Industrial PDA Barcode Scanner Reader for Logistics & Warehouse

Mobydata M63 4G 3+32G Industrial PDA Barcode Scanner Reader for Logistics & Warehouse

Brand Name:	MobyData
Model Number:	M63
MOQ:	10pcs
Price:	155-205 USD/pc
Delivery Time:	7wks days < MOQ500
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China Certification, CE

Document:

M63.pdf

Weight:

279g (With Battery)

Dimension:

165.86mmx67mmx19.22mm

Memory:

RAM: 3GB; Flash: 32GB

OS:

Android 14

NFC:

Option Version

Packaging Details:

Carton

Supply Ability:

20K pcs per Month

Highlight:

Mobydata M63 4G industrial PDA

3+32G barcode scanner reader

warehouse PDA barcode scanner

Product Description

Mobydata M63 4G 3+32G Industrial PDA Barcode Scanner Reader for Logistics & Warehouse 0

Mobydata M63 4G 3+32G Industrial PDA Barcode Scanner Reader for Logistics & Warehouse 1

Product specification

Technical Specifications
OS	Android 14
CPU	Octa Core, 2.0GHz; 2XA75+6xA55 or 4xA53+4xA53
MEMORY	RAM:3 GB; Flash:32 GB

Physical Specifications
Weight	279g(With battery)
Dimension	165.86mmx67mmx19.22mm
Keypad	20-key numeric keyboard Left/right scan Back, home, toggle touch keys

Main Parameters
LCD	4.0 inch, 800*480
TP	IPS GFF capacitive screen, multi-touch
Extend Slot	SIM card slot: Single card, Nano SIM1+TF1
Extend Slot	SD card slot: MicroSD, up to 256GB
Main camera	Auto focus 8Mega, flash
Front camera	Fixed focal length, 5Mega (option)

Power and Charging
USB	USB 2.0 Type-C charging data transmission
Adapter	5V2A 100~240V AC 50/60HZ, Plug: National standard
Battery	5000 mAh min, Replaceable
Charging	<3.5h
Operation	>30 hours
Battery life	500 cycle> 80%

Sensors
Gravity sensor	Option
Proximity Sensor	Option
Photosensitive sensor	Option
Hall Sensor	Option
status lamp	Yes

Voice
Speaker	Min 100db
Receiver	Option
Mic	Double Mic with Noise Reduction

Environment
IP	IP65
Drop	1.5m steel floor fell 30 times, 1.8m steel floor fell 60 times (with silicone sleeve)
Tumble	0.5m steel plate falls 2000 times, 0.5m steel plate roller 3000 times (with silicone sleeve)
Storage Temperature	-30C to 70C
Operation Temperature	-25°C ~ +55°C
Humidity	5%-95% non-condensing
Charging Temp	0°C -35°C
ESD	8K/15K

Data Collection
Engine	E31XX/E34XX
Green Spot	Option
Symbologies	1D Codes /2D Codes /Postal Codes

Wireless
Bluetooth	BLE V5.0
WLAN	802.11.a/b/g/n/ac WiFi dual band radio; IPv4； IPv6
GPS	GPS/Glonass/Galileo/Beidou,Assisted GPS
NFC	Option
WWAN	2G/3G/4G full Netcom
VOLTE	Yes
CA	LTE CAT6, CA B1/3/7/40/41,Downlink 300Mbps

Gift Box
Device, QSG, Adapter, USB cable,Battery

Optional Accessory
Single host and battery charger, 4-slot device charger, 4 battery charger, Spare battery, silicon rubber case, wrist strap, Shoulder belt

Warranty
Labor warranty for parts for 12 months
